Introduction

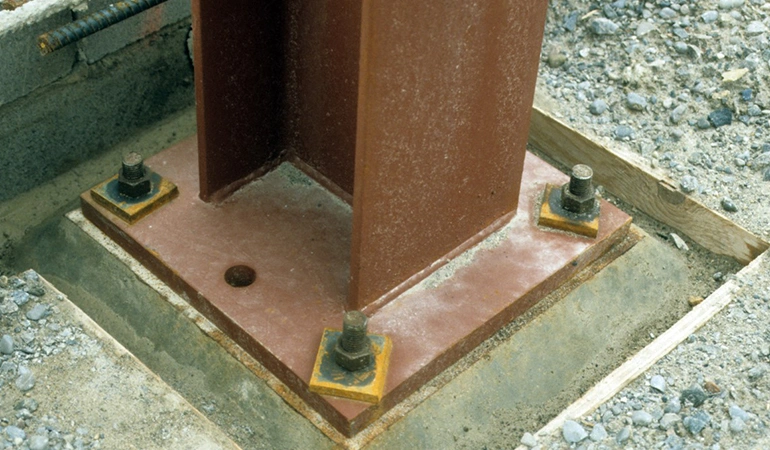

In structural steel construction, every detail matters — especially the connections between columns and foundations. One such detail is the use of oversized anchor bolt holes in base plates. Though it may seem minor, this design decision is crucial for the safety, performance, and efficiency of the structure.
As a leading provider of structural steel detailing services, GridsGlobal understands the importance of precise detailing for steel erection, including anchor bolt coordination and base plate configuration.
1. Tolerances and Field Adjustability
Construction Tolerances
During fabrication and erection, minor dimensional variances are inevitable. Oversized holes provide flexibility, allowing the base plate to align correctly with anchor bolts without force-fitting or rework — a key consideration in steel detailing services.
Easier Installation
The extra clearance simplifies installation, avoiding the need for field modifications that can delay project timelines or compromise safety.
2. Structural Movement and Stress Relief
Thermal Expansion & Contraction
Steel expands and contracts with temperature changes. Oversized holes allow for this movement without creating high-stress points — a detail often accounted for in base plate detailing and anchor bolt layout plans.
Load Redistribution
In seismic zones or where dynamic loads are present, oversized holes help prevent localized stress concentrations, improving overall resilience — a standard in seismic steel detailing projects.
3. Use of Templates and Grouting
Grouting Space
Base plates are typically supported on leveling nuts before grouting. Oversized holes make it easier to adjust plate positions accurately — a detail incorporated into foundation plan drawings by experienced steel detailers.
Template Use
Templates with oversized holes allow accurate placement of anchor bolts during concrete pouring — a practice widely used in structural steel fabrication drawings.
4. Preventing Damage During Erection
Forcing bolts into tight holes can lead to:
- Cracked concrete
- Bent or damaged bolts
- Deformed base plates
Key Detailing Considerations
| Consideration | Description |
|---|---|
| Shop Drawing Requirements | Oversized holes must be clearly marked in shop drawings |
| Use of Plate Washers/Shims | To ensure proper contact and load transfer |
| Slotted Holes for Seismic Zones | Required in high seismic areas as per design codes |
| Load Transfer Integrity | Despite hole clearance, structural loads (shear, moment) must be managed |
Conclusion
Oversized anchor bolt holes are a vital part of steel connection detailing, helping manage construction tolerances, accommodate movement, and prevent installation damage. At GridsGlobal, structural steel detailing services ensure these critical elements are accurately modeled, coordinated, and delivered on time — supporting faster erections and safer structures.
